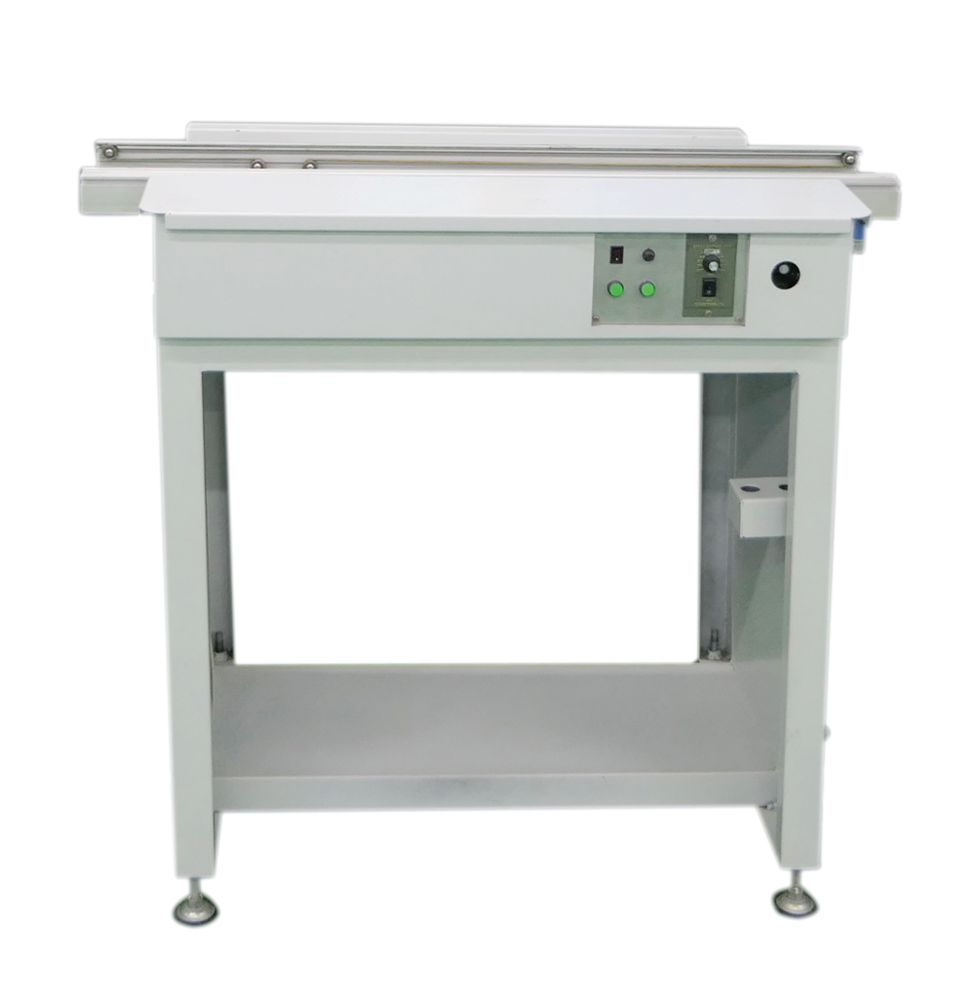

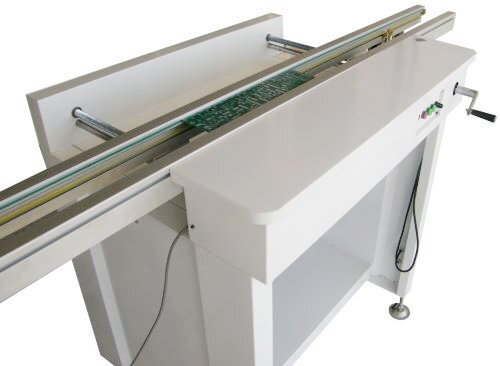

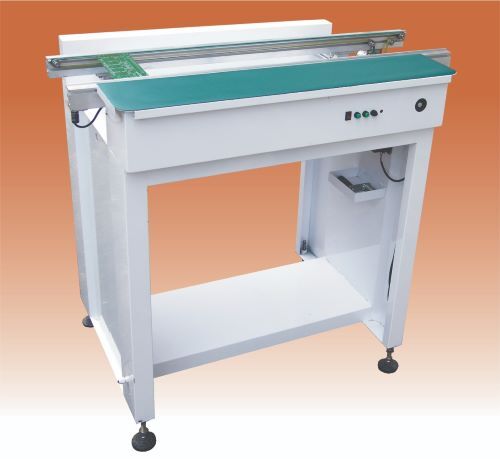

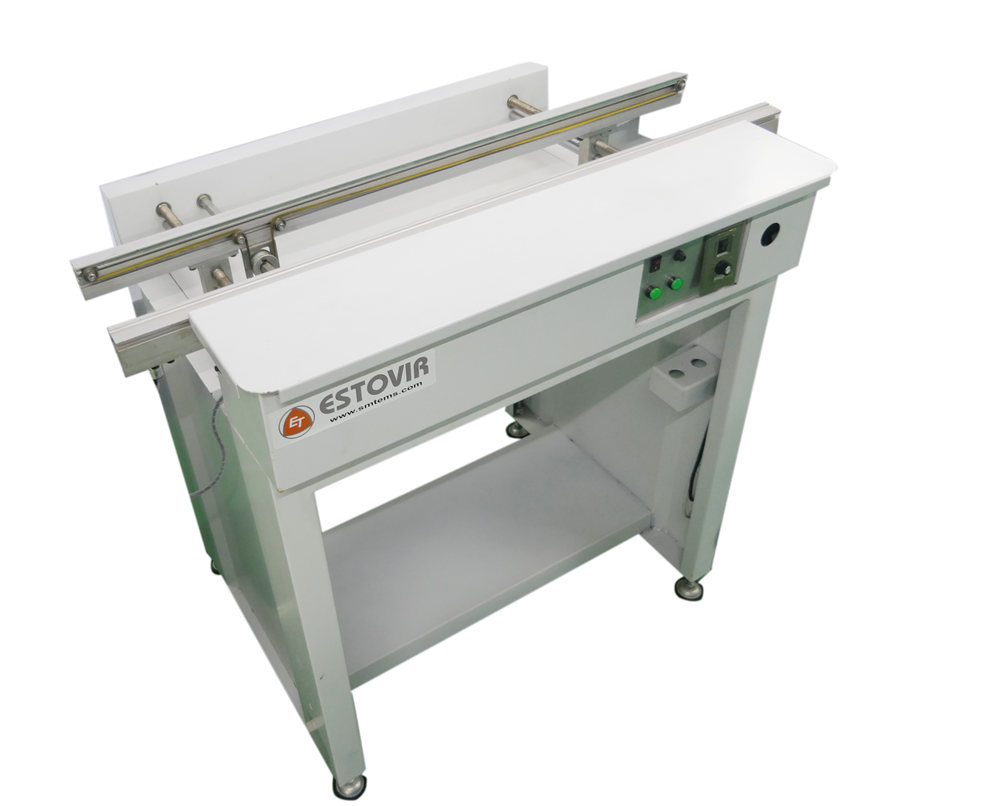

SMT Line Conveyor (Estovir 1000C) | Inspection & Linking Conveyor System

Product Description

The SMT Line Conveyor â€“ Estovir 1000C is a high-performance inspection and buffer conveyor engineered for SMT production lines, ensuring seamless PCB transport and consistent production flow. Designed with antistatic belt technology, precise rail width adjustment, and SMEMA communication compatibility, it provides reliable connectivity across stencil printers, pick & place machines, and reflow ovens — making it an essential asset in every modern electronics assembly environment.

Constructed from industrial-grade MS or SS, the Estovir 1000C ensures long-term stability, high accuracy, and smooth PCB handling. With a conveyor height of 900 mm ± 20 mm and adjustable width from 50 mm to 350 mm, it integrates effortlessly into SMT lines, providing efficient inspection, linking, and buffering between process stages.

• Advanced Construction & Durability
  • Precision-engineered MS or SS frame ensures accurate rail width alignment and structural rigidity.
  • Antistatic belt and alloy MS or SS parts extend operational life while protecting sensitive PCBs.
• SMEMA Communication Integration
  • Fully compatible with SMEMA interface standards for easy linking with other SMT equipment.
  • Supports synchronized PCB flow between upstream and downstream machines, minimizing downtime.
• Precision PCB Handling

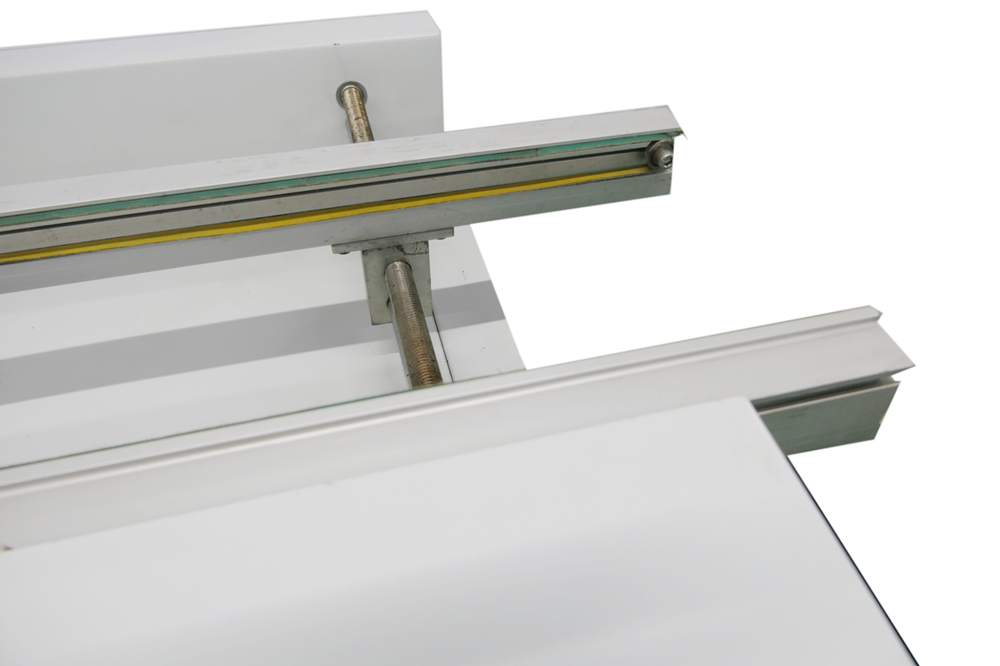

  • Adjustable rail width system accommodates PCB sizes ranging from 50 mm to 350 mm.
  • Stable 900 mm ± 20 mm conveyor height ensures accurate line alignment and smooth transfers.
• Control & Customization
  • Optional PLC control system allows automated operation and variable speed (0.5 – 20 m/min).
  • Custom add-ons such as lighting, inspection modules, or cooling fans enhance versatility.
• Compact & Modular Design
  • Available in 1000 mm standard and 500 mm compact lengths for varied production layouts.
  • Modular design enables multi-unit configurations for extended buffering or inspection zones.

• Length variants: 500 mm / 1000 mm / 1500 mm / custom sizes
• Adjustable conveyor width for different PCB formats
• Optional lighting, cooling, or inspection modules
• PLC control and speed customization (0.5–20 m/min)
• Structural modifications for line integration or multi-unit linking
• Structure Material:  MS or SS.

• Linking between stencil printers, pick & place machines, and reflow ovens
• Buffer storage during speed variation or equipment maintenance
• Visual inspection and quality control stations with lighting options
• PCB testing and verification in assembly lines
• Integration with AI assembly systems for through-hole insertion and mixed production setups

• Engineered by experts in PCB handling and SMT automation
• ESD-safe and SMEMA-compatible for safe and synchronized operations
• Rugged aluminium/steel structure for durability and accuracy
• Modular, space-saving options (500 mm & 1000 mm)
• Customizable features with PLC and inspection enhancements
• Backed by Estovir Technologies' support and service assurance
