Product Description

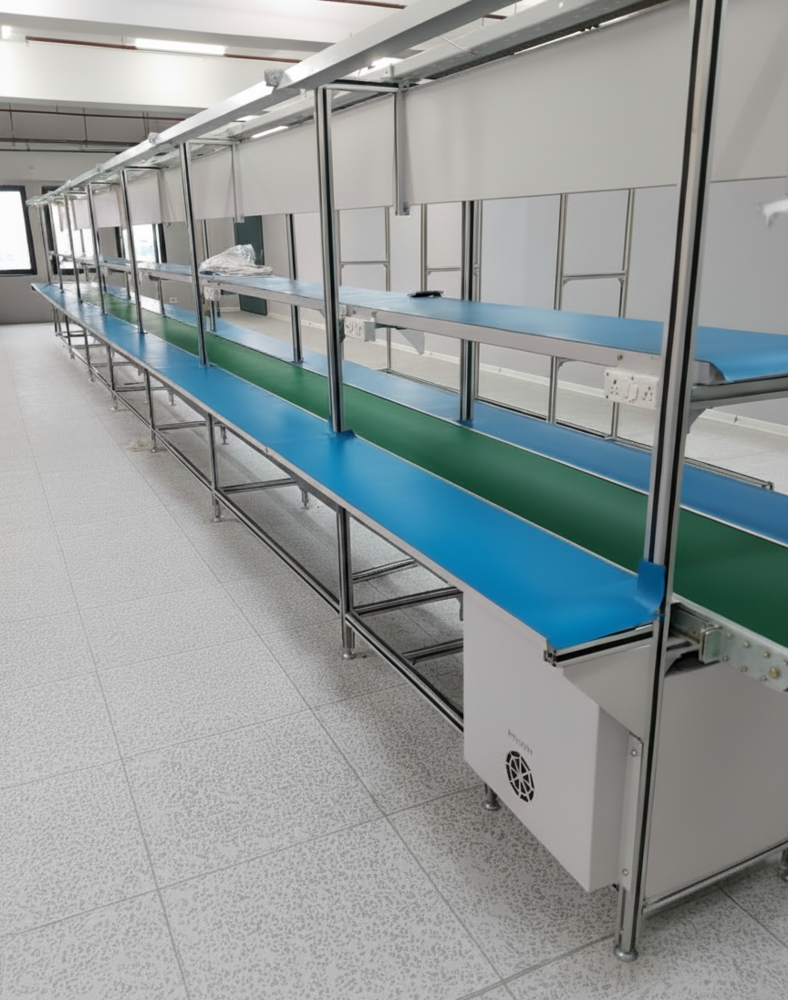

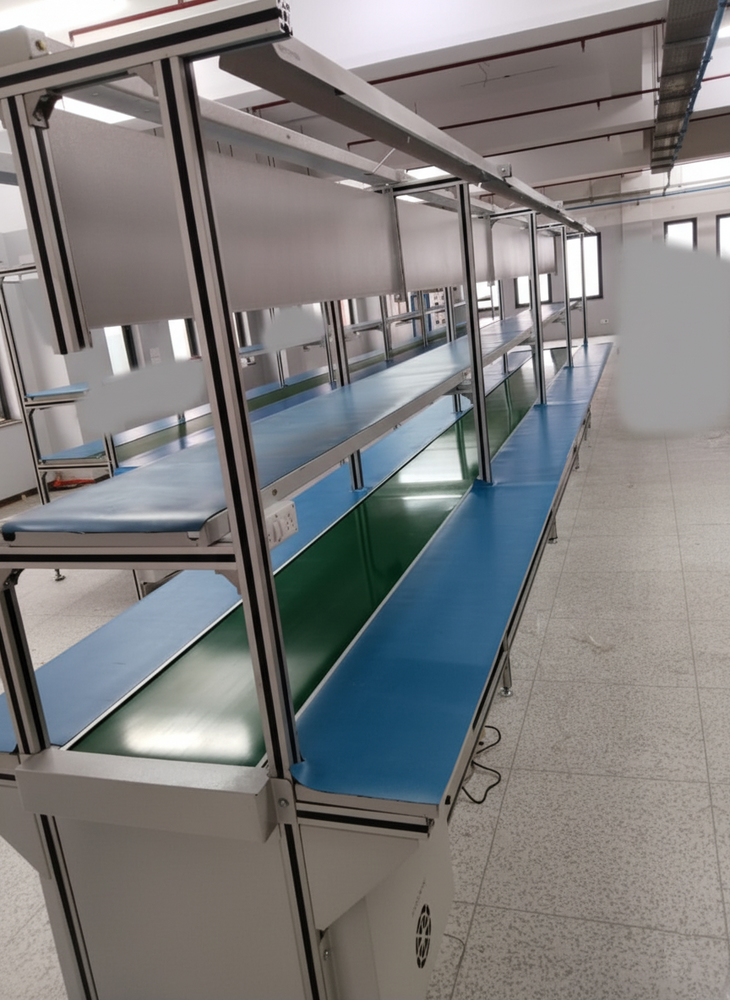

Belt Conveyor 9 Mtr. (30)

Overview of Belt Conveyor by Estovir Technologies

The Belt Conveyor by Estovir Technologies is a high-performance, dual-sided, fully customizable transport system engineered for PCB assembly lines, electronic component handling, and multi-stage integration. Built with durable aluminium or powder-coated steel structure, the conveyor delivers reliability, efficiency, and ergonomic design for modern electronics manufacturing environments.

With a 9-meter double-sided working length (customizable) and variable speed control (26 M/min), this conveyor ensures smooth, safe, and efficient transfer of PCBs and electronic components through soldering, inspection, testing, and packaging stages. Its ergonomic working height (850 mm 25 mm) reduces operator fatigue, while the anti-static ESD worktop safeguards sensitive electronics.

Product Specifications of BeltConveyor

Key Features

High Efficiency & Dual-Sided Operation

• Transfers PCBs/components on both sides, doubling throughput.
• Supports multi-stage integration with SMT/PCB machinery.

Durable & Robust Construction

• Aluminium profile (4040) or powder-coated steel for corrosion resistance.
• 300 mm MS sheet with ESD mat for stable assembly.

Ergonomic & Operator-Friendly

• Fixed ergonomic height (850 mm 25 mm).
• Reduces fatigue during soldering, inspection, or assembly.

Adjustable Speed & Precision Control

• VFD panel for speed control (26 M/min).
• Compatible with soldering, inspection, or testing stations.

Accessories & Safety

• LED tube lighting (without wiring).
• Steel display board for drawings.
• 2 Switch & 2 Socket box per 6 ft. section.
• Non-flammable, wood-free build for fire safety.

Customization Options

The Belt Conveyor is fully customizable for different production needs:

• Length & Height  From compact to extended multi-meter lines.
• Working Width & Belt Size  Adjustable for various PCB/component sizes.
• Structure Options  Aluminium profile or powder-coated steel pipe.
• Socket Configuration  Flexible placement and setup.
• Lighting Integration  LED tube lighting (with/without wiring).
• Exhaust Fans & Airflow  Optional cooling/ventilation for heat-sensitive areas.
• Accessories  Display boards, shelves, and tool sliders.

With these options, the conveyor becomes a tailor-made solution for your assembly line.

Installation & Support

• On-Site Installation & Calibration  Professional setup as per layout.
• Operator Training  Safe, efficient operation guidance.
• Preventive Maintenance  Scheduled servicing for uptime.
• Spare Parts  Genuine parts with quick delivery.
• After-Sales Support  Responsive team for troubleshooting and upgrades.

Applications

• PCB Assembly Lines  Smooth flow through soldering, inspection, and packaging.
• Component Handling  Safe transfer of delicate electronics.
• Multi-Stage Integration  Works with pick-and-place, AOI, reflow ovens.
• Ergonomic Workstations  Easy operator access at waist height.

Why Choose Estovir Belt Conveyor?

• Dual-Side Operation  Boosts productivity.
• Ergonomic Design  Reduces operator fatigue.
• Durable & Reliable  Long-life aluminium/steel build.
• Safe for Electronics  ESD-safe design protects components.
• Customizable  Lengths, widths, and add-ons to fit any line.
• Trusted Brand  Backed by Estovir Technologies' expertise in automation.
