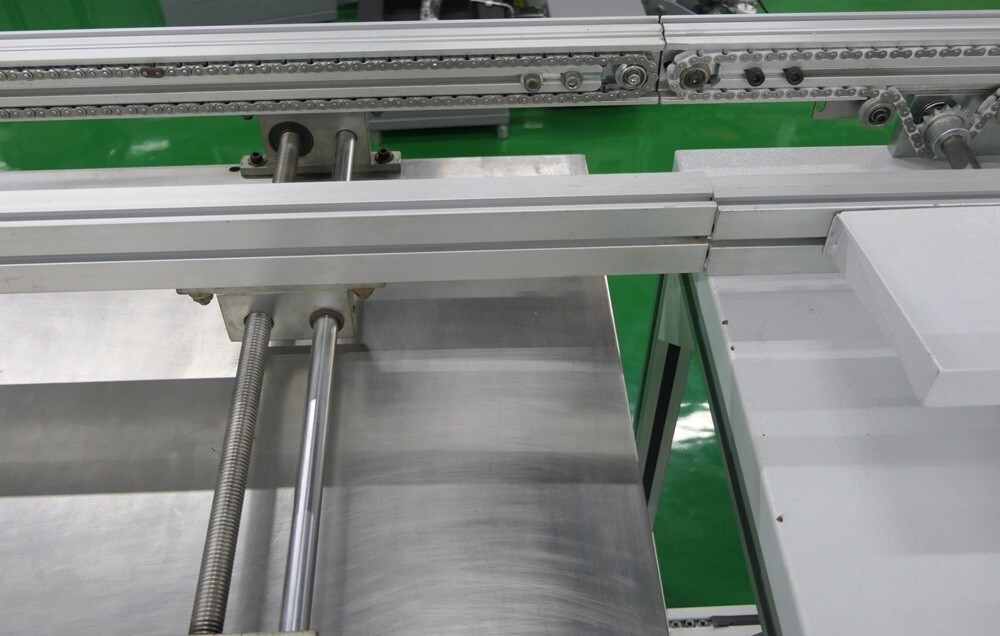

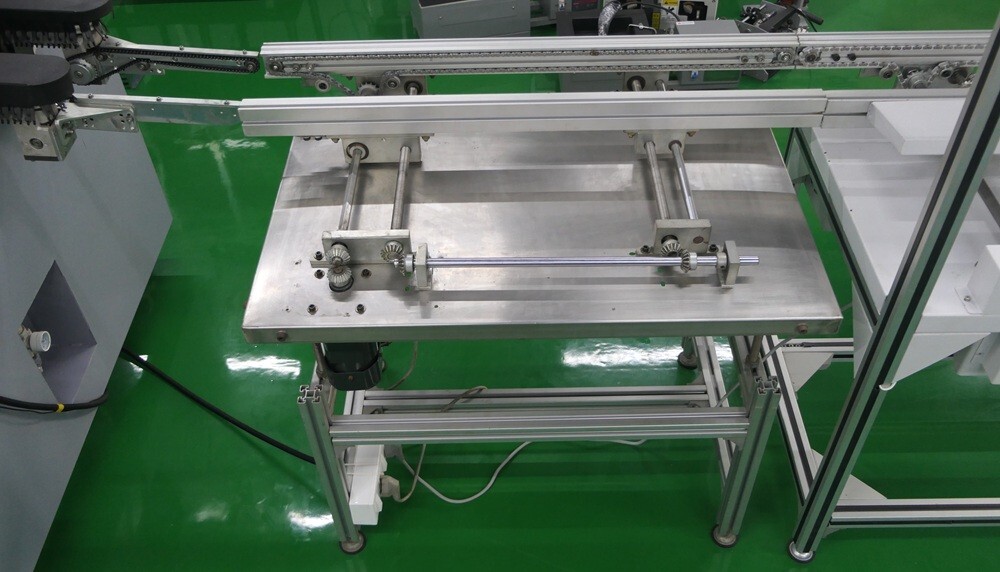

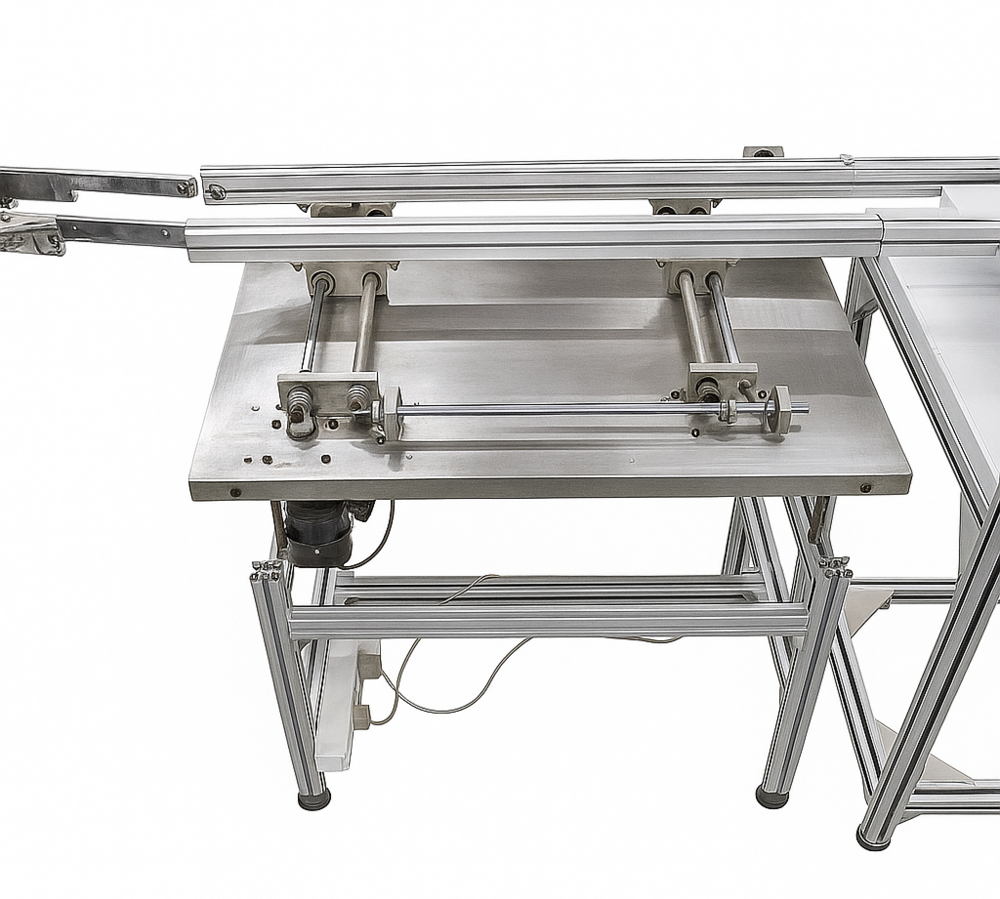

nlet Conveyor – ET 1000 EC | PCB Linking Conveyor

Overview
The Inlet Conveyor – ET 1000 EC is a precision-engineered PCB linking conveyor designed to streamline transfer in SMT and wave soldering lines. Acting as a reliable bridge between multiple stages, it ensures smooth, vibration-free, and accurate PCB movement. Built with ESD-safe materials, variable speed control, and adjustable width, the ET 1000 EC is ideal for EMS, consumer electronics, automotive, and medical device industries.

Modular Inlet Conveyor for SMT & Wave Soldering – High-Precision PCB Transfer

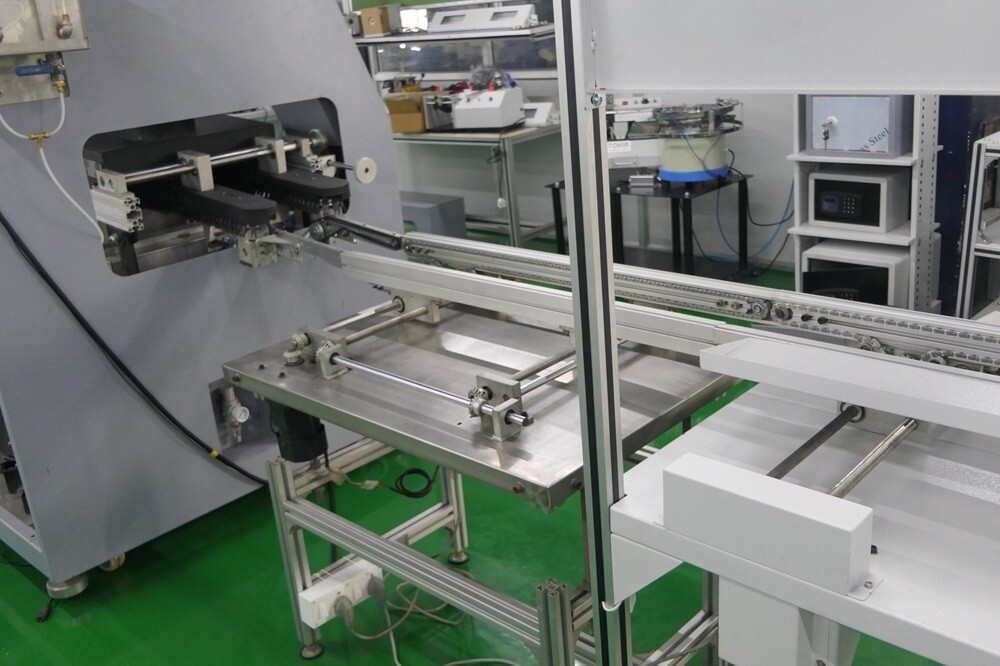

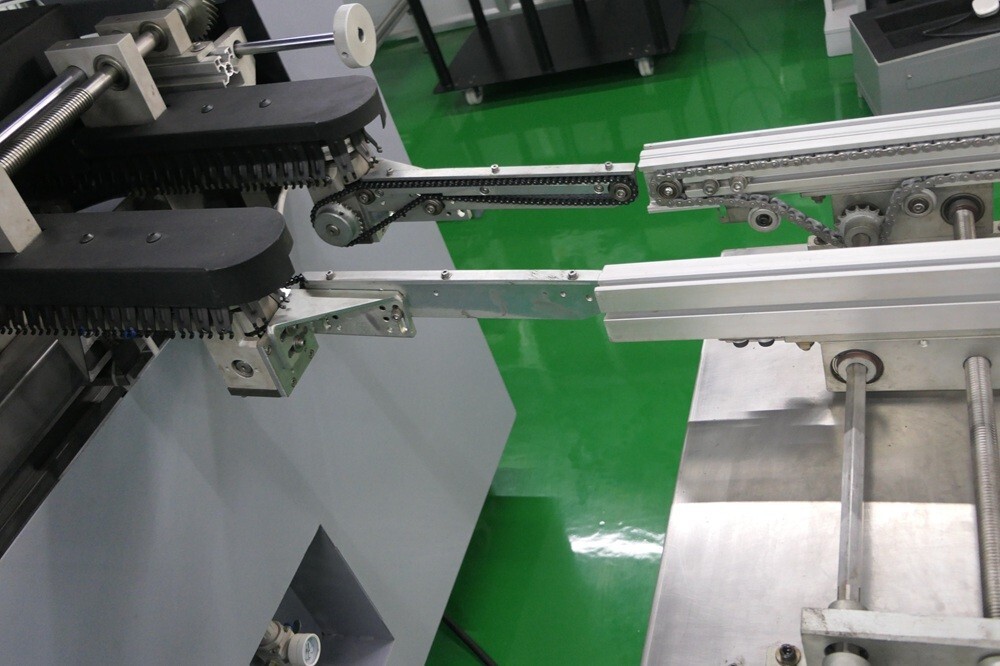

This inlet conveyor integrates seamlessly with upstream and downstream equipment such as manual insertion lines, wave soldering machines, reflow ovens, and inspection stations. It enhances efficiency, reduces downtime, and supports flexible production line configurations.

Adjustable PCB Width

• Handles PCB sizes from 50 mm to 350 mm.

• Quick manual adjustment for flexible, multi-model production.

Smooth & Reliable Transfer

• Gear/chain-driven system for stable PCB movement.

• Low-vibration design prevents component shift or solder defects.

Variable Speed Control

• Adjustable speed from 5–6 m/min, adaptable to line requirements.

Robust & ESD-Safe Build

• Aluminium profile with stainless-steel platform.

• Powder-coated frame ensures durability and static protection.

SMEMA/IPC Standard Connectivity

• Plug-and-play interface with SMT/soldering equipment.

• Optional Ethernet & Industry 4.0 support.

Smart Additions

• Alignment sensors for precision transfer.

• Buzzer & safety covers for operator safety.

Flexible Configurations

• Length options: 500 mm / 1000 mm.

• Height-adjustable legs for smooth line integration.

Energy-Efficient, Low Maintenance

• Consumes only 40–70 W.

• Modular design simplifies service and reduces downtime.

The ET 1000 EC Inlet Conveyor is a vital element in modern PCB assembly lines, especially where speed, accuracy, and connectivity are critical. Typical uses include:

• Linking manual insertion (MI) lines with wave soldering machines.

• Acting as a buffer station to maintain smooth production.

• Transitioning PCBs between modules with different elevations.

• Serving as an inspection, pause, or repair station.

• Widely applied in EMS, automotive electronics, consumer devices, and medical PCB production.

Selecting the ET 1000 EC means investing in a globally trusted, efficient, and durable PCB conveyor system. Benefits include:

• Accurate, stable transfer without PCB misalignment.

• Customizable lengths and widths to fit any line.

• Industry-standard SMEMA/IPC communication for seamless plug-and-play integration.

• Rugged ESD-safe construction for long-term reliability.

• Optional smart features aligned with Industry 4.0.

• Proven performance in high-volume electronics manufacturing worldwide.
