Manual PCB Insertion Conveyor MPI 350D (Double Side)

Product Description

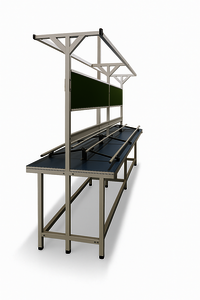

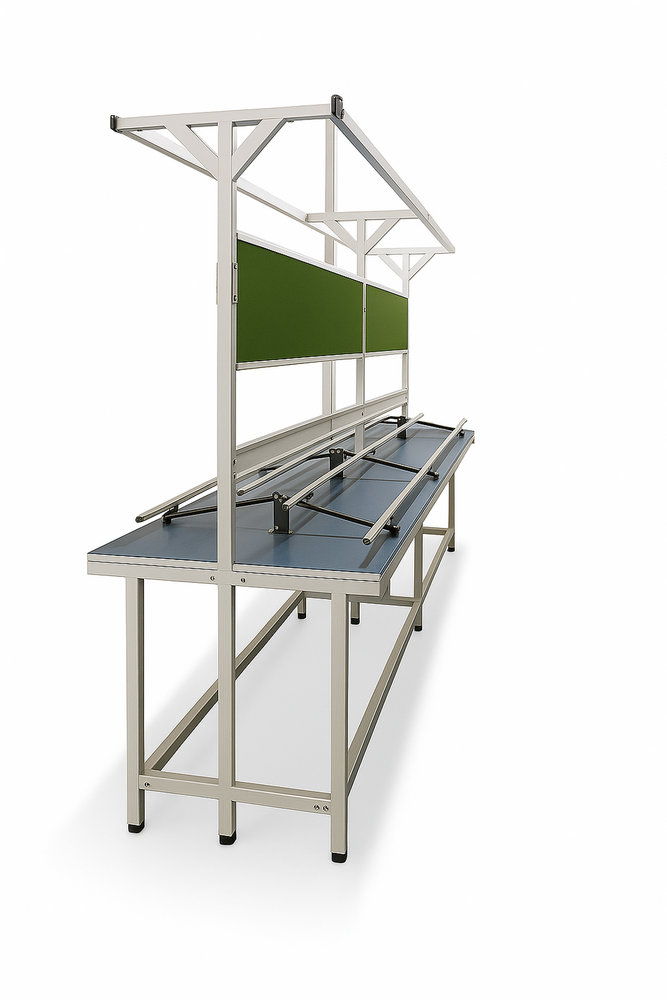

The Manual PCB Insertion Conveyor – MPI 350D (Double Side) by Estovir Technologies is an advanced manual PCB assembly conveyor designed for efficient double-sided insertion, inspection, and testing of printed circuit boards in ESD-sensitive environments. Its central free-flow conveyor allows operators to work from both sides simultaneously, enabling faster throughput and optimized production workflow. Equipped with adjustable PCB width (50–350 mm), ESD-safe trays, and modular accessories, the MPI 350D is built to enhance productivity while maintaining safety and ergonomics.

• Double-Side Workstation
  • Central conveyor allows operators to work from both sides for higher productivity.
  • Improves assembly line flow by reducing idle time and handling effort.

• Both-Side Bin Strip for Efficient Component Handling

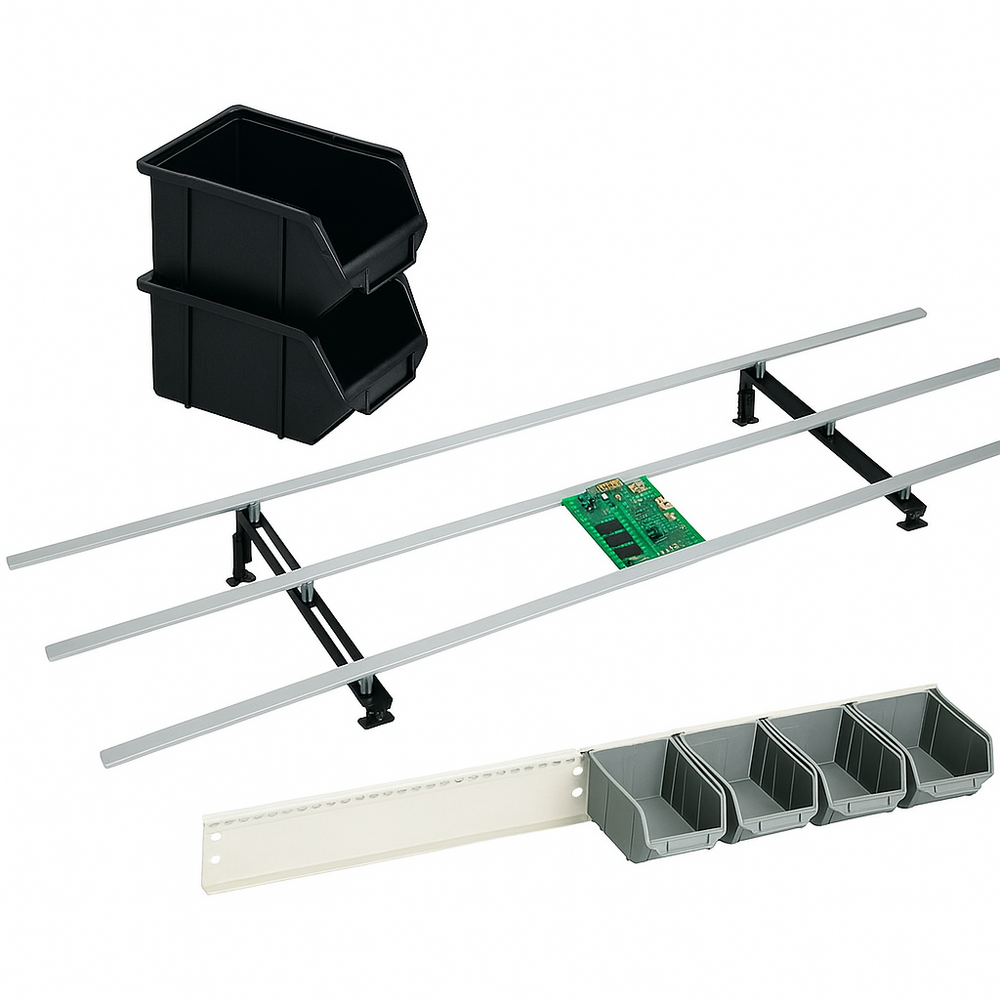

  • Equipped with bin strips on both sides of the conveyor, allowing organized storage and quick access to components.
  • Each side supports 16 bins (total 32 bins capacity), and the conveyor is supplied with 16 standard bins for use.

• Adjustable PCB Width (50–350 mm)
  • Quick manual adjustment supports various PCB sizes without complex tools.
  • Ensures seamless changeovers for multi-product manufacturing lines.

• Enhanced ESD-Safe Design
  • ESD mats and grounding points on both sides protect sensitive components.
  • Minimizes static-related defects during assembly and testing.

• Optimized Material Handling
  • Dual trays, bin strips, and shelves keep components organized and accessible.
  • Reduces operator movement and speeds up component insertion.

• Ergonomic Operator-Friendly Layout
  • Comfortable working height (850 mm) helps reduce operator fatigue.
  • Wide access zones on both sides improve accuracy and ease of use.

• Durable & Reliable Structure
  • Rugged aluminium (40×40) or powder-coated steel frame ensures long service life.
  • Designed to withstand continuous industrial use with minimal maintenance.

• Integrated Productivity Accessories
  • Display steel boards on both sides allow easy placement of drawings and instructions.
  • Optional add-ons like task lighting, cooling fans, and power sockets enhance usability.

• Double-Side Through-Hole PCB Assembly
• Manual Component Insertion (resistors, capacitors, connectors)
• Inspection & Quality Control Stations
• Testing and Verification Lines
• Automotive & Aerospace PCB Assembly
• Consumer Electronics Manufacturing
• Industrial PCB Assembly Workflows

• Specialized for Double-Side Manual PCB Insertion & Assembly
• ESD-Safe Construction for Sensitive Electronics
• Strong Aluminium/Steel Build for Long-Term Durability
• Optimized Workflow for Faster Production Output
• Ergonomic Design for Operator Comfort and Efficiency
• Fully Customizable Dimensions & Accessories
• Reliable Support from Estovir Technologies' Expertise
