Product Description

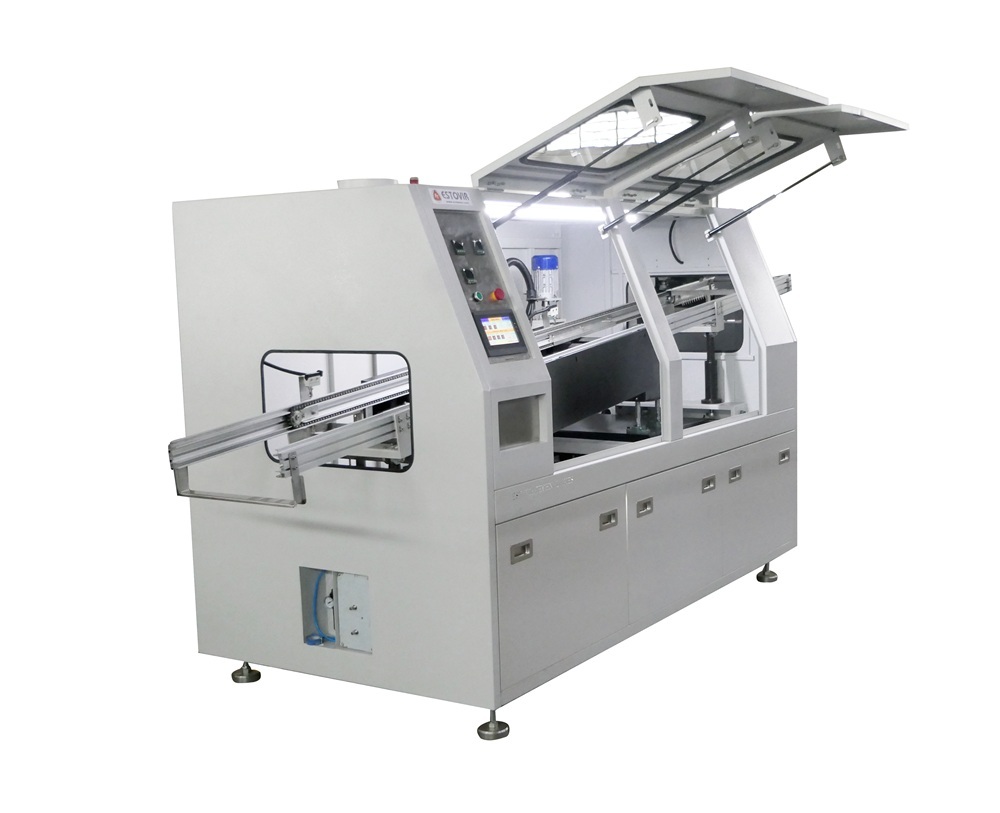

Overview of  Wave Soldering Machine   WSM 350 DC (carrier Types)

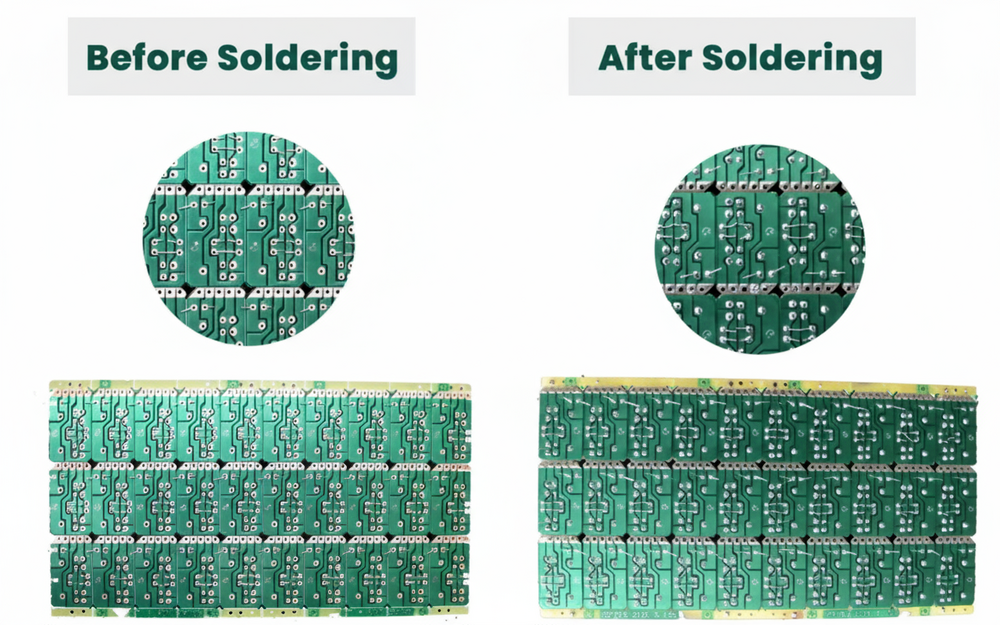

The Wave Soldering Machine  WSM 350 DC (Carrier Type) is a high-performance dual wave soldering system designed for modern PCB assembly lines. Used in PCB mass production soldering It delivers reliable soldering for through hole components and selective SMD applications, ensuring consistent solder joints, faster production speeds, and reduced defects. With double wave technology, precise temperature control, and a robust conveyor system, this machine is an ideal choice for industries such as automotive electronics, consumer electronics, industrial equipment, and communication devices..

• Maximized Productivity:Ideal for mass PCB production, delivering faster throughput and significantly reducing cycle times.
• Uncompromising Quality:Ensures consistent, defect free solder joints by automating the process and minimizing human error.
• Future Proof Design:Fully supports lead free soldering processes with its durable, corrosion-resistant titanium alloy solder pot.

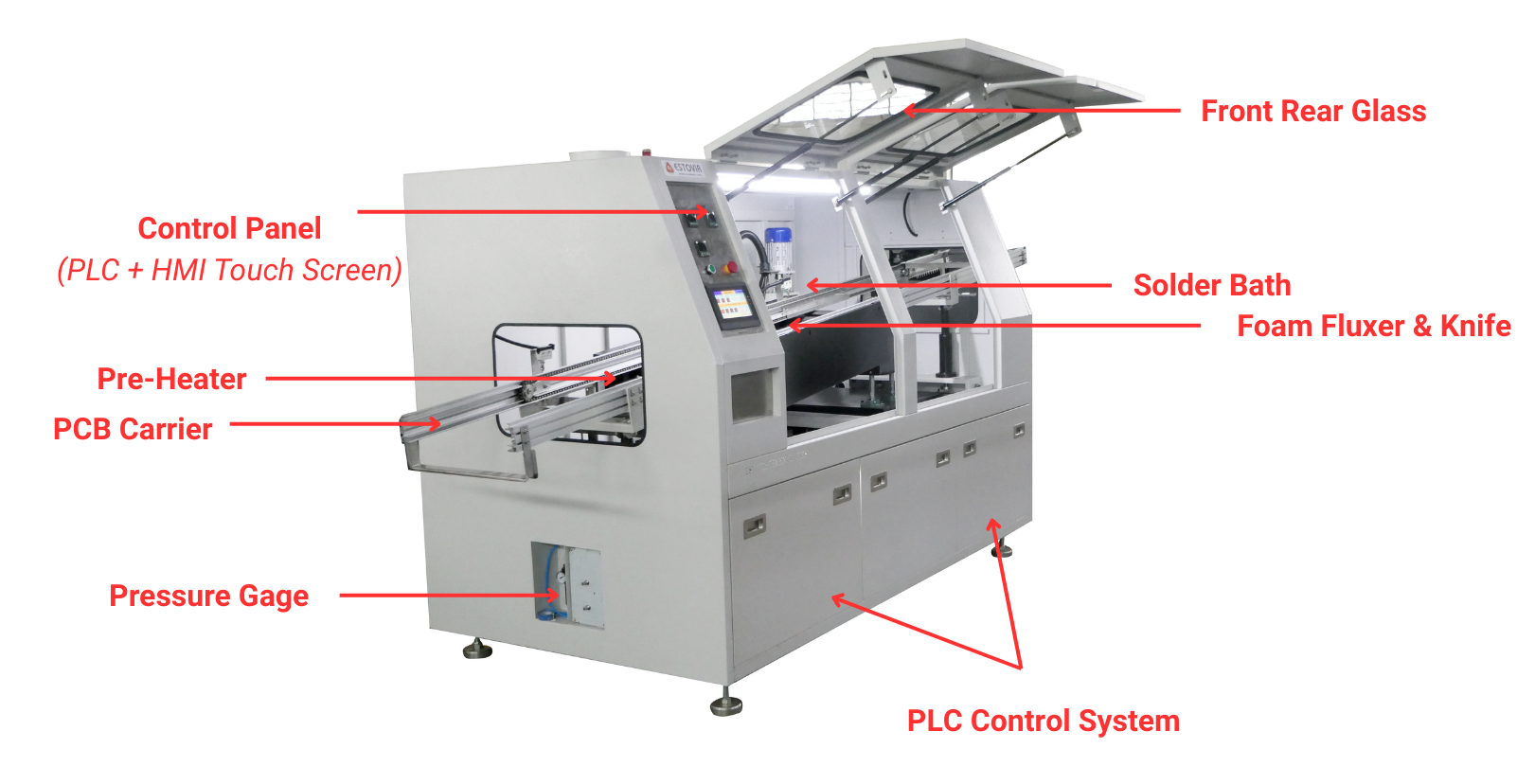

Key Features of  Wave Soldering Machine – WSM 350 DC (Carrier Types)

Dual Wave Soldering Technology for defect-free solder joints

• Ensures complete solder coverage for high-density PCBs

• Advanced PLC + HMI Touchscreen Control System
  • Digital control of conveyor speed, solder wave height, and temperature
• Energy-Efficient PID + SSR Heating Control
  • Reduces power consumption while ensuring stable soldering

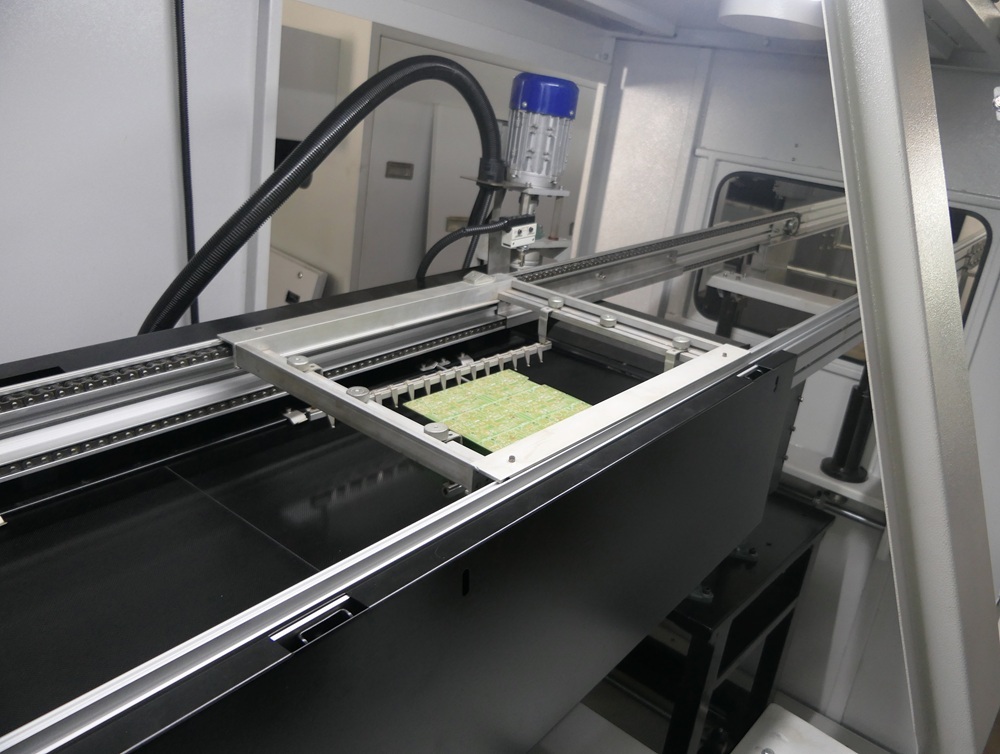

• Automatic Conveyor with Adjustable Width

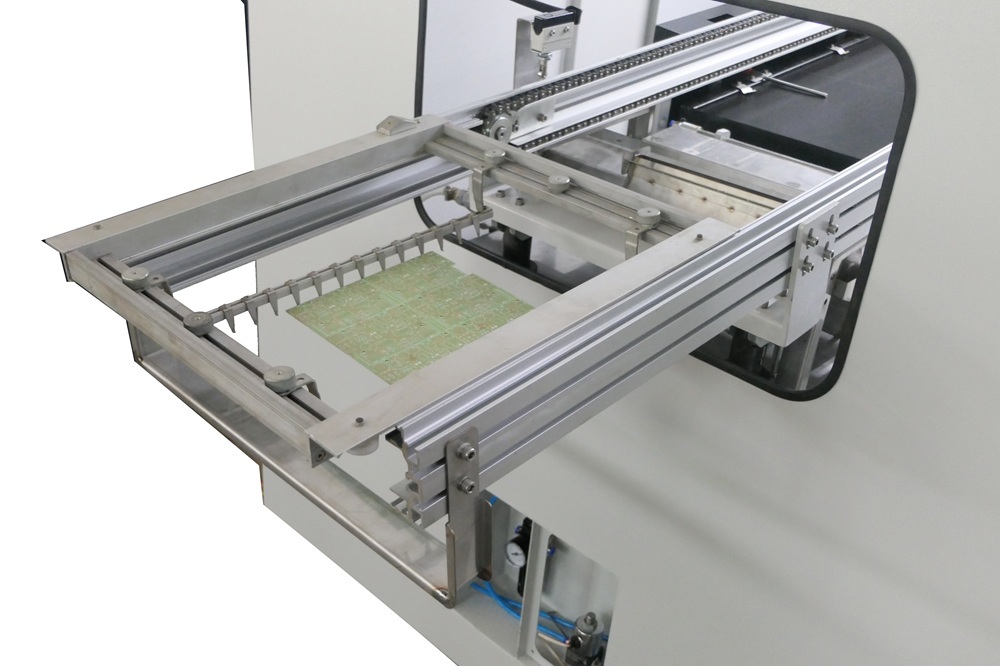

  • Smooth dual finger carrier system for vibration-free transport
• High-Performance Foam Fluxer with Economy Mode
  • Auto-timer reduces flux and solvent consumption significantly
• Titanium Alloy Solder Pot for Lead-Free Compatibility
  • 260 kg solder capacity with temperature up to 300°C

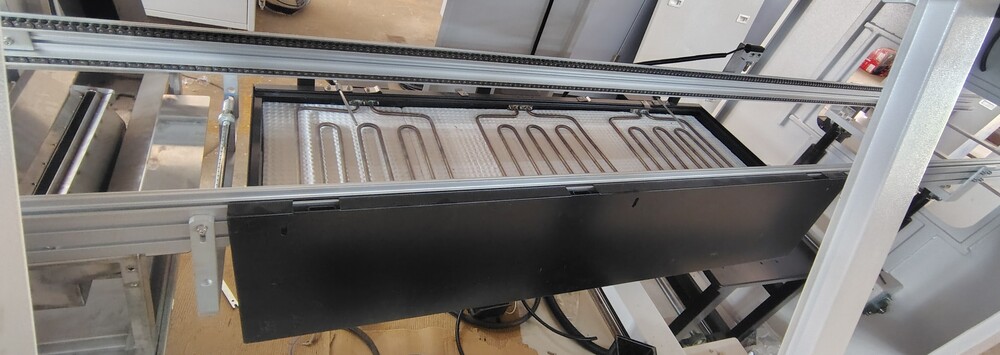

• Efficient Preheating with Ceramic Glass Heater
  • Thermal insulation reduces energy loss and operating costs
• 2 Air Fan Cooling System for Reliable Solidification
  • Extends lifespan of components and solder pads

• Integrated Finger Cleaning System
  • Precision Pneumatic Control with Pressure Gauge
    • Features an accurate pressure gauge and solenoid valve for reliable flux spraying.
    • Allows for fine-tuning of air pressure to ensure perfect flux application every time.
