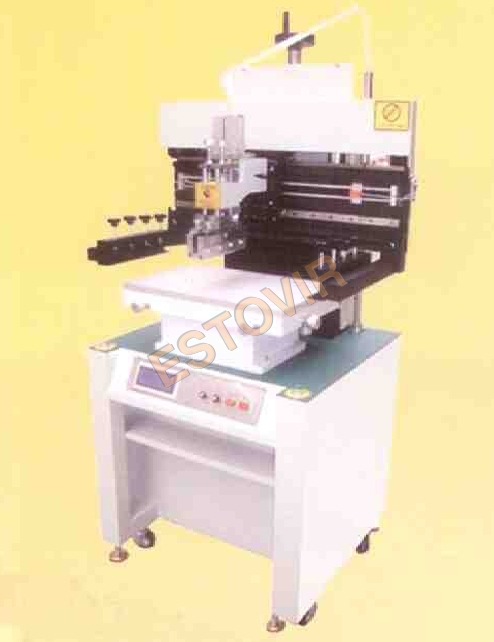

Semi-Automatic Solder Paste Printer

Get a Price/Quote

Product Details:

Drive Stepper Motor
Model No SPP-900
Frequency 50Hz/60Hz
Production Capacity Up to 600 boards/hour
Features Easy operation, Stable performance, Adjustable print speed
Motor Power 90W
Voltage 220V
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Semi-Automatic Solder Paste Printer Price And Quantity

Minimum Order Quantity 1 Piece

Semi-Automatic Solder Paste Printer Product Specifications

Model No SPP-900
Pressure Adjustable squeegee pressure
Drive Stepper Motor
Frequency 50Hz/60Hz
Production Capacity Up to 600 boards/hour
Usage & Applications SMT PCB Solder Paste Printing
Product Type Semi-Automatic Solder Paste Printer
Power Rating 350W
Accuracy 0.01 mm
Motor Power 90W
Voltage 220V
Features Easy operation, Stable performance, Adjustable print speed
Lubricating System Manual
Dimension (L*W*H) 900 x 800 x 1650 mm
Power 220V/50Hz
Weight (kg) Approx. 180 kg
Technology Screen Printing
Noise Level < 65 dB
Operating Temperature 5C - 40C
Power Source Electric
Surface Treatment Powder Coated
Machine Type Semi-Automatic
Color White/Black
Frame Type Fixed

Working Speed Adjustable
Platform Adjustment XYZ fine adjustment
Squeegee Blade Width 250 mm
Table Size 320 x 440 mm
Printing Mode Single/Double squeegee options
Maintenance Low maintenance design
Fixture Type Adjustable PCB clamping
Frame Positioning Magnetic clamp
Operating Panel Digital touch control
Maximum PCB Size 320 x 445 mm

Product Description

FEATURES

PLC Control System to ensure working stabilized reliable Touch

screen is easy to operate

High Rigidity structure and linear rails ensure the stabilities and

precision of pinting

This printer can automatically set the running parameters to comport

with all kind of products and get best performance according to

different characteristic of glue and solder paste

Flexible arming base with the arms can be adjusted toward ight or left

to match different size of PCB

The printing knife can be rotated 45X upward then fixed to convenient

for the clean replace of knife and stencils Calibration method is to use the movement of stencil to match with X Y Z of printing base

SPECIFICATIONS

Mode ET680SP ET740SP

Features

Description Suitable for printing solder paste and glue for all kinds of

thick or thin PCB Single or Double

Power Requirement 220VAC50HZ 1 Phase

Power Consumption 100 W

PCB Thickness Range 02 30 mm

Fine Adjustment of Platform 005 mm

Respectable Precision 0 002 mm

Air Supply 4 6 Kgcm sq

Printing Plat form 320 x 500 mm 320 x 500 mm

Stencil Dimension 370 x 470 to 370x 470 to

550 x 650 mm 736 x 736 mm

PCB Dimension 320 x 450 mm 320 x 500 mm

PCB Positioning Method Positioning Pin Positioning Pin

Printing Method Stencil Movement Stencil Movement

Dimension L880 W680 L1000W870

H1650 mm H1650 mm

Weight 220 Kg 260 Kg

Precision Meets Productivity

The SPP-900 delivers precise solder paste application with an accuracy of 0.01 mm, ensuring superior quality results for PCB assembly lines. Its adjustable working speed and dual squeegee mode enable customized performance for different job requirements. The XYZ fine adjustment platform and magnetic clamping guarantee secure and accurate PCB placement every time.

User-Friendly Control and Versatility

Equipped with a digital touch control panel and microprocessor-based control system, the SPP-900 offers intuitive operation. Operators can easily adjust settings for speed, pressure, and print modes to suit varying PCB sizes and production demands. The adjustable PCB clamping fixture and flexible design support a wide range of applications in electronics manufacturing.

Robust Build and Low Maintenance

Designed with a durable powder-coated frame and manual lubricating system, the SPP-900 ensures reliability and ease of care. Its low maintenance structure minimizes downtime, while the stable stepper motor-driven mechanism maintains consistent performance over prolonged use, making it an optimal choice for high-volume PCB printing.

FAQ's of Semi-Automatic Solder Paste Printer:

Q: How does the SPP-900 Semi-Automatic Solder Paste Printer ensure accuracy during operation?

A: The SPP-900 features an XYZ fine adjustment platform and microprocessor control, allowing operators to achieve highly precise paste placement with an accuracy of 0.01 mm. Magnetic frame clamps and adjustable PCB clamping fixtures ensure stable positioning throughout the printing process.

Q: What PCB sizes can the SPP-900 accommodate, and does it support different squeegee options?

A: This printer is designed for PCBs up to 320 x 445 mm and is compatible with a squeegee blade width of 250 mm. Operators can choose between single and double squeegee printing modes to optimize for different application requirements.

Q: When should routine maintenance be performed on the SPP-900, and what does it involve?

A: Though the SPP-900 is engineered with a low-maintenance design, routine manual lubrication and occasional cleaning of the frame and squeegee should be conducted as per usage frequency to ensure optimal performance.

Q: Where is the SPP-900 typically used, and for which industries is it most suitable?

A: This semi-automatic printer is primarily used in electronics manufacturing environments, especially for SMT PCB solder paste printing and assembly. It's widely adopted by PCB assemblers, exporters, and suppliers seeking high productivity with consistent quality.

Q: What is the maximum production capacity, and how does the machine achieve high throughput?

A: The SPP-900 can process up to 600 boards per hour, thanks to its high-speed adjustable working speed, efficient stepper motor drive, and streamlined digital control system that minimize manual handling and cycle time.

Q: How does the digital touch control panel enhance the user experience during the printing process?

A: The digital touch operating panel allows for straightforward adjustment of print parameters, such as speed and squeegee pressure, making operation efficient and reducing the learning curve for new users.

Q: What are the main benefits of choosing a semi-automatic solder paste printer like the SPP-900 over manual alternatives?

A: Compared to manual printers, the SPP-900 offers superior accuracy, consistent solder paste deposition, greater throughput, and reduced operator fatigue. The adjustable features also allow for enhanced process control and flexible adaptation to varying production needs.
