Product Description

Automatic DIP Soldering Machine  14 X 14 by Estovir Technologies

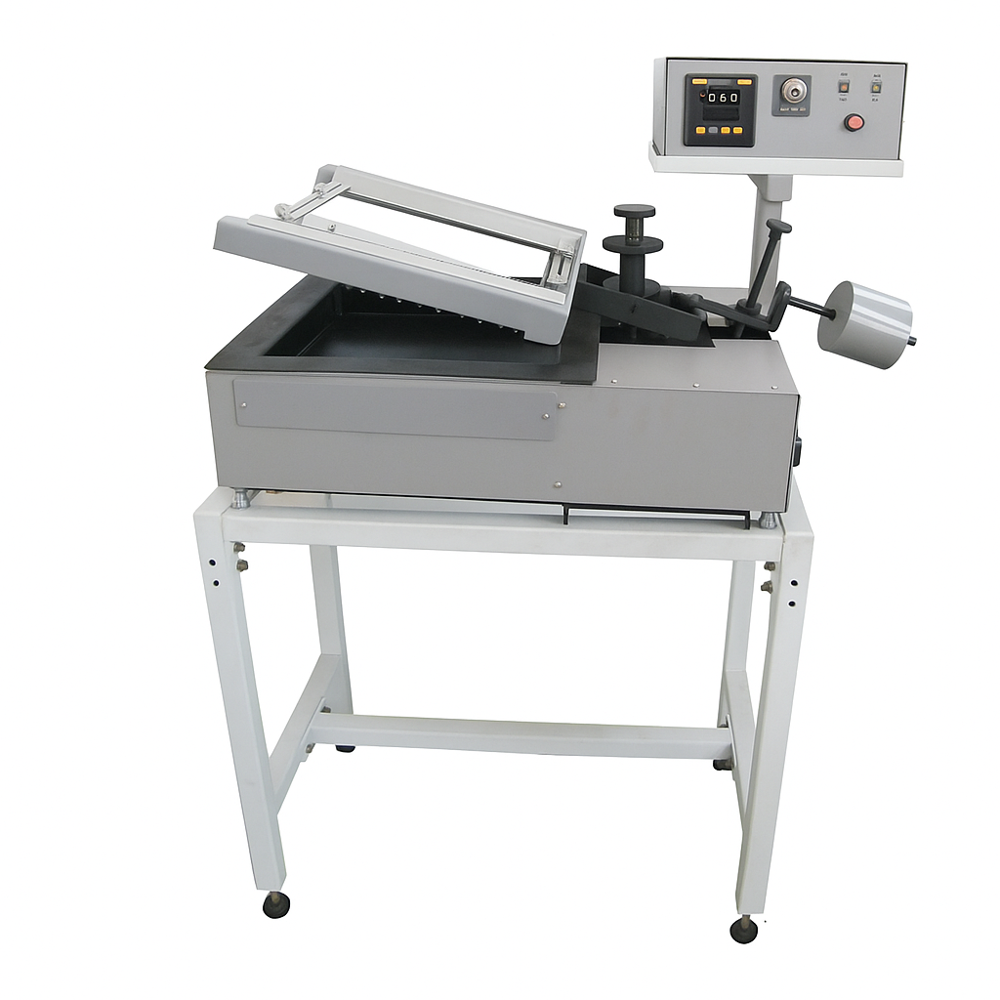

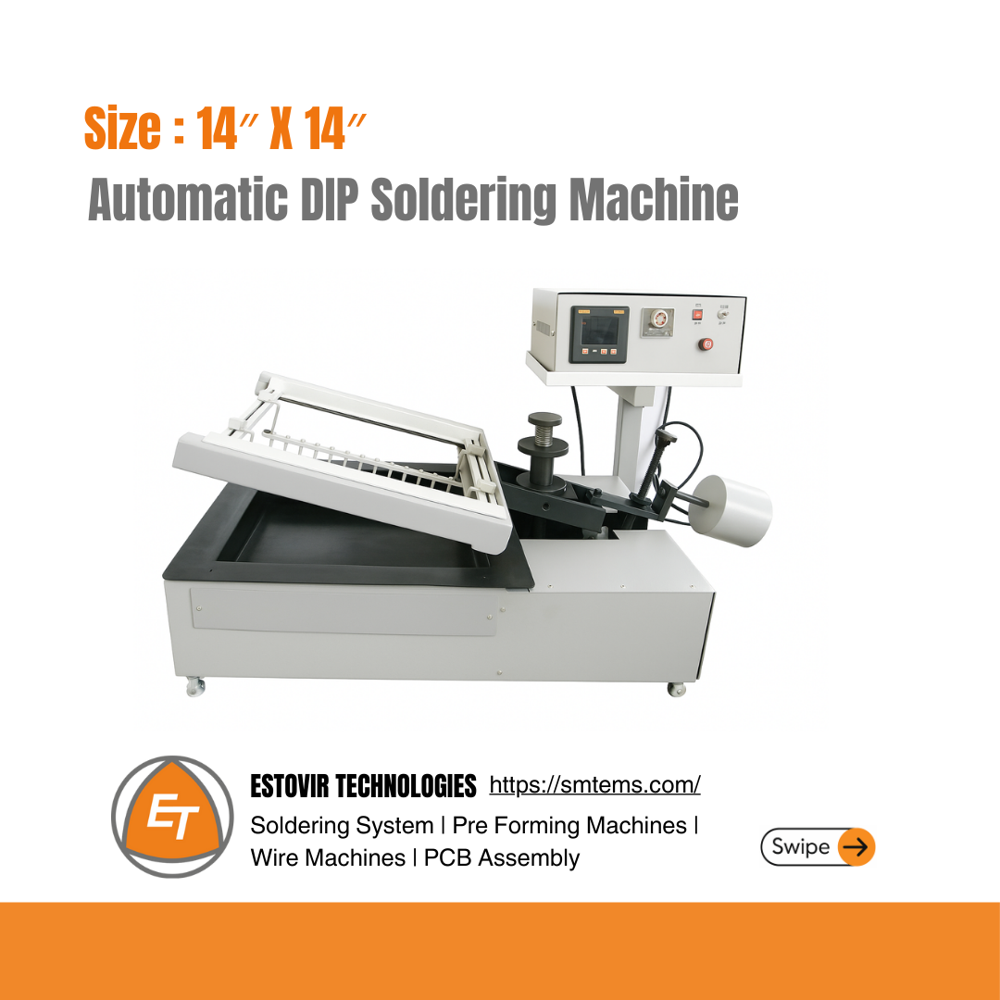

Automatic DIP Soldering Machine  14 X 14

Estovir Technologies introduces a high-performance Automatic DIP Soldering Machine 14 X 14 machine tailored for modern electronics manufacturing. With cutting-edge features and durable design, it ensures consistent soldering outcomes with minimal manual input. Whether youre scaling production or refining prototypes, this machine delivers dependable results every time.

Technical Specification





Why Choose Estovir Automatic DIP Soldering Machine 14 X 14 Benefits You Can Count On

Estovirs Automatic DIP Soldering Machine 14 X 14 is engineered to deliver efficiency, reliability, and long-term performance. Its designed with the needs of high-speed electronics production in mind and guarantees consistent results across multiple batches. Heres why it stands out:

• Superior Soldering Accuracy
  The system delivers precise and uniform solder joints, minimizing the risk of cold joints, solder bridges, or incomplete connections.
• Enhanced Productivity
  With reduced manual intervention and fast processing, it significantly increases production throughput for both small and large batch volumes.
• Optimized Energy Use
  Advanced thermal control and efficient power usage reduce overall operational costs without compromising performance.
• Labor Cost Reduction
  By automating soldering, the machine reduces dependence on manual labor, lowering staffing needs while maintaining high-quality output.
• Consistent Quality Across Batches
  Whether its your first PCB or the hundredth, every board is soldered with the same precision thanks to digital timing and temperature regulation.
• Low Maintenance, High Uptime
  Designed with durable parts and easy access panels, this machine ensures fewer breakdowns and quick servicing, boosting uptime.
• Eco-Conscious Design
  With efficient energy use and minimal solder waste, it supports sustainable production practices.

Key Features of Automatic DIP Soldering Machine 14 X 14

Each unit from Estovir Technologies integrates industry-leading innovations that simplify soldering tasks and enhance reliability:

• Digital Temperature Controller
  The solder bath is precisely maintained with a digital controller, ensuring consistent heat distribution and preventing thermal shock to components. This feature is crucial for sensitive or multi-layer PCBs.
• Electronic Dwell Timer
  Set and automate soldering time with pinpoint accuracy. This ensures that every component is exposed to the solder for the exact duration required, improving solder strength and reliability.
• Fast Heat-Up Time
  With heat-up times of just 35 minutes, the machine quickly reaches optimal temperature, reducing idle time and enabling faster job starts.
• Rugged Industrial Build
  Crafted from high-grade materials, the machine withstands long production hours in demanding factory environments, ensuring years of reliable performance.
• Mechanical Depth Adjustment
  Users can easily adjust the soldering depth to suit various PCB thicknesses. This helps accommodate diverse board layouts without needing different equipment.
• Multi-Board PCB Carrier
  The versatile PCB carrier allows multiple boards to be loaded at once, boosting efficiency in batch soldering without compromising quality.
• Compact Footprint
  Despite its powerful capabilities, the machine fits neatly in most workspaces, making it suitable even for smaller production units or labs.
• Low Operating Noise
  Designed for quiet operation, it maintains a safe and comfortable working environment for technicians and operators.

Automatic DIP Soldering Machine 14 X 14 Applications

This solution is ideal for:

• Consumer electronics manufacturing
• LED lighting assemblies
• Automotive electronics
• Telecommunication equipment
• Power supply units
• R&D labs and prototyping centers

No matter the scale, Estovirs Automatic DIP Soldering Machine delivers uniform results across every application.

Estovir Technologies presents the Automatic DIP Soldering Machine 14 X 14 engineered for speed, accuracy, and consistency in mass PCB soldering. Our machine offers excellent thermal stability, precise temperature control, and an advanced PCB carrier system. With intuitive digital controls and robust safety mechanisms, it simplifies soldering tasks across production lines. Ideal for electronics manufacturers, repair centers, and prototyping units, it boosts throughput while reducing soldering defects. Get superior quality, less manual intervention, and optimized energy usage in every batch.
