SMT PCB Magazine Unloader ET 250UL

Product Description

SMT PCB Magazine Unloader ET 250UL

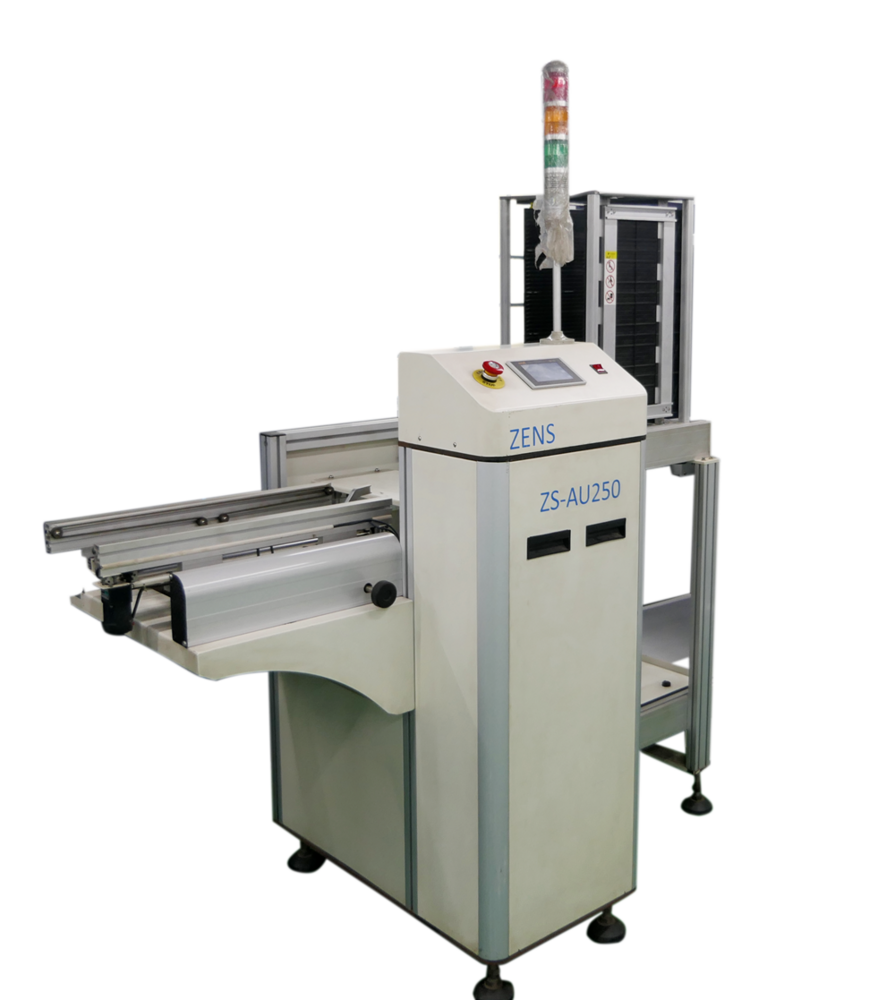

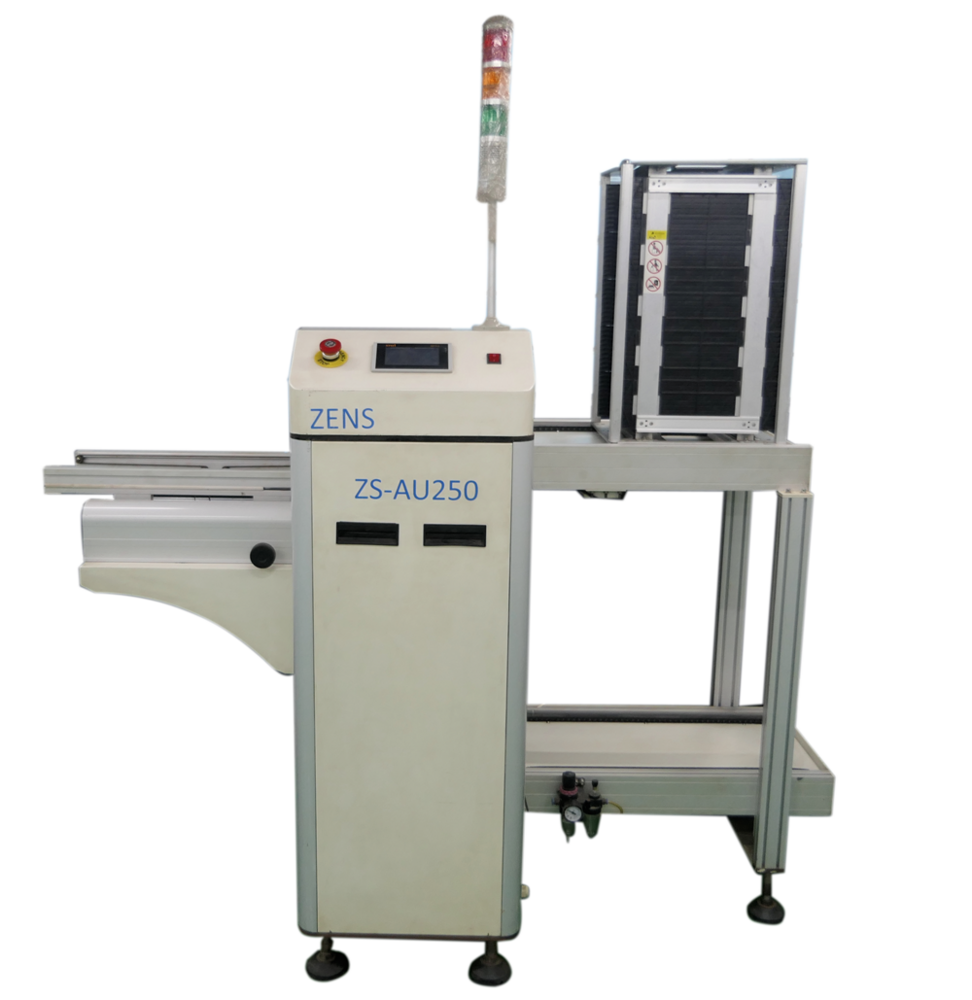

The SMT PCB Magazine Unloader ET 250UL by Estovir Technologies is a fully automatic unloading system designed for removing printed circuit boards (PCBs) from production lines and placing them efficiently into magazines. Built with precision, durability, and stability in mind, this machine is ideal for modern SMT (Surface Mount Technology) and AI (Automatic Insertion) assembly lines.

Engineered with a high-strength aluminium alloy frame, the ET 250UL ensures long-term operational stability and minimal vibration during continuous industrial use. Its PLC + micro-computer control system guarantees smooth, reliable, and programmable performance, while the intuitive touchscreen interface provides easy, user-friendly operation. The unloader supports various PCB sizes and thicknesses, with adjustable pace settings based on board specifications. Additionally, it features multi-color light and sound alarm indicators for real-time system alerts and safety notifications.

Key Features of SMT PCB Magazine Unloader ET 250UL

Durable Aluminium Alloy Structure

• High-strength frame provides exceptional stability and vibration resistance.
• Ensures reliable long-term operation under continuous industrial load.

Advanced PLC + Micro-Computer Control

• Delivers steady and consistent performance.
• Enables precise, automated unloading cycles with minimal human intervention.

Touchscreen Display

• Intuitive, user-friendly control panel for simplified operation.
• Reduces operator training time and enhances workflow efficiency.

Smart Alarm System

• Multi-color light and sound alarm for operational safety alerts.
• Notifies users immediately in case of system faults or process issues.

Adjustable Elevator Pace

• Pacing speed can be configured (1060 mm optional) according to PCB thickness.
• Allows flexible operation for different magazine types and PCB formats.

Fast Magazine Replacement

• Magazine changeover completed in 30 seconds, maximizing productivity.
• Smooth lifting mechanism ensures safe handling during replacement.

Energy-Efficient Design

• Operates on AC 220V, 50Hz power with 46 kg/cm air pressure.
• Designed for energy efficiency and low maintenance operation.

Applications of SMT PCB Magazine Unloader

• Automatic unloading of PCBs from SMT or AI production lines.
• Safe stacking of PCBs into magazines after inspection or soldering.
• Reduces manual handling to minimize risk of PCB damage.
• Ideal for automated assembly lines requiring consistent throughput.
• Ensures continuous, stable, and hands-free unloading operation.

Why Choose ET 250UL PCB Magazine Unloader

• Superior build quality with aluminium alloy construction for enhanced durability.
• PLC + micro-computer control ensures smooth, stable, and reliable operation.
• Touchscreen interface simplifies setup and control.
• Multi-alarm system improves safety and operational awareness.
• Adjustable pitch and magazine configuration for versatile applications.
• Quick 30-second magazine changeover reduces downtime.
• Low-maintenance, energy-efficient design for 24/7 industrial use.
• Backed by Estovir Technologies expert support and service.

Versatile & Reliable Unloading Solution

The ET 250UL is tailored for automated PCB unloading, handling magazine sizes up to L 355 x W 320 x H 563 mm and PCBs max 330 x 250 mm. Its customizable configuration makes it suitable for various SMT production and assembly lines. Built with heavy-duty powder-coated steel, this unit ensures durability and stable long-term operation in demanding industrial environments.


Effortless Operation & User-Friendly Controls

Featuring an intuitive touchscreen HMI and PLC-controlled operations, the ET 250UL ensures straightforward setup and monitoring. The stepper-motor-driven lift, push-type pusher, and automatic magazine capacity detection streamline the process, while SMEMA interface ensures seamless line integration. Easy-access maintenance points additionally minimize downtime and service costs.


Comprehensive Safety & Maintenance Features

Operator safety is enhanced with an emergency stop, interlock door, and error alarms. The unloaders low-noise (<65dB) design and manual lubrication system reduce operational disruptions. All service points are readily accessible, reducing overall maintenance time and effort, while warranty extensions are available upon request for added peace of mind.
