Product Description

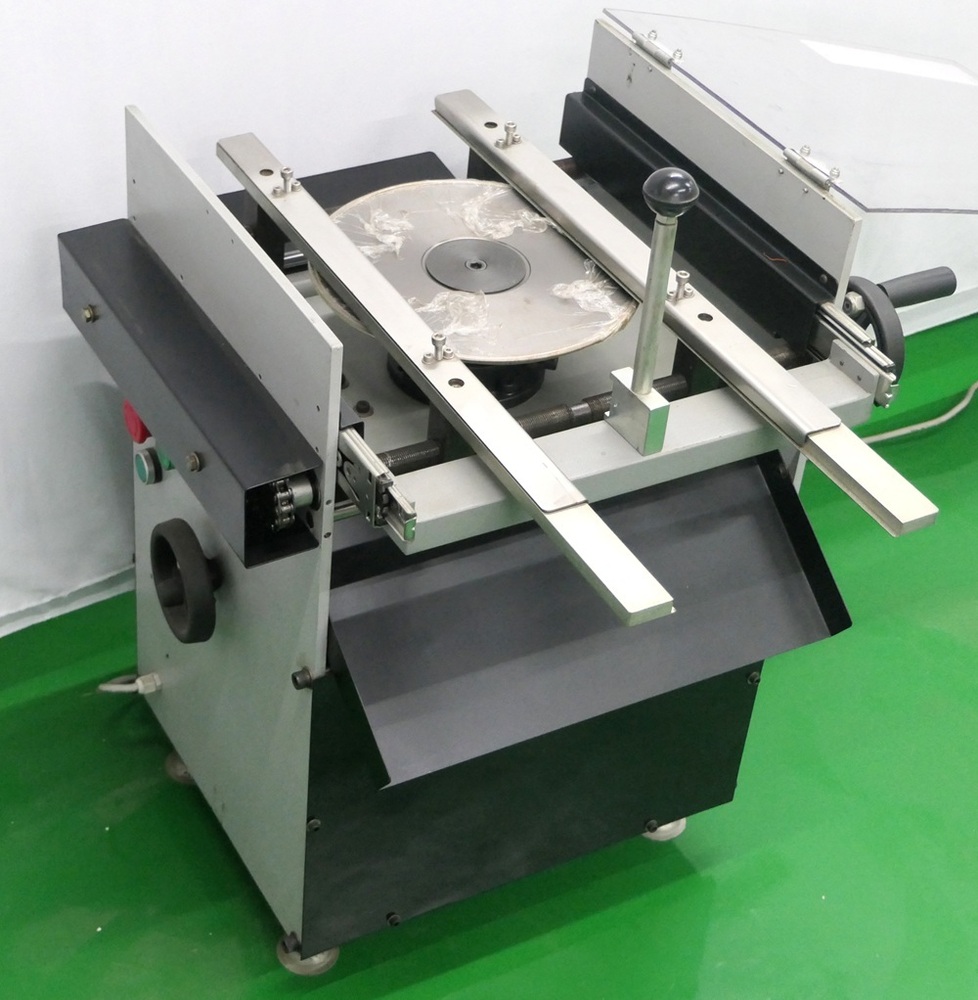

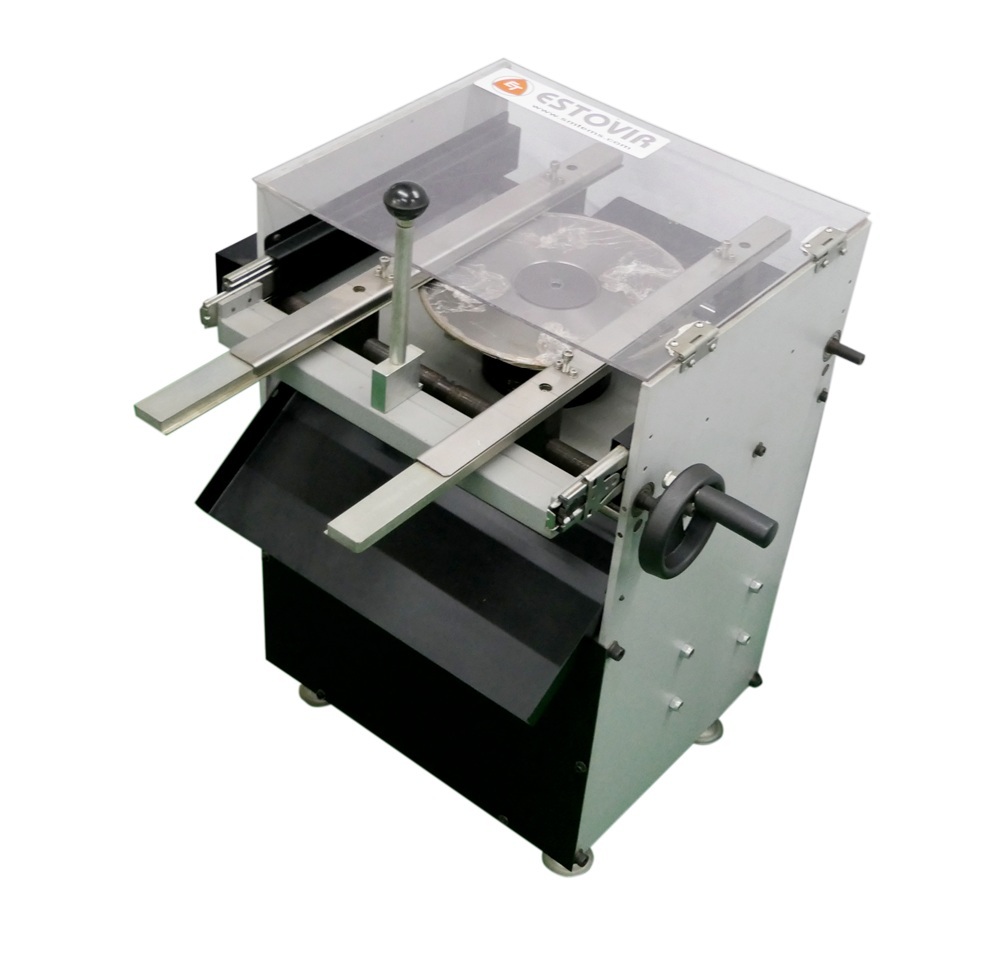

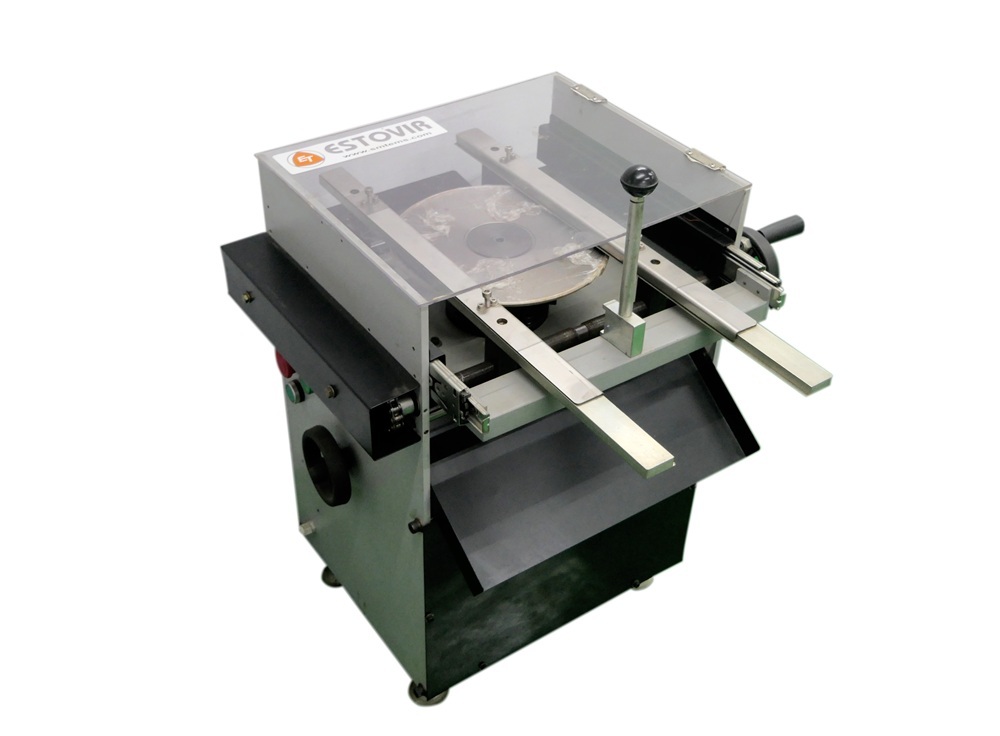

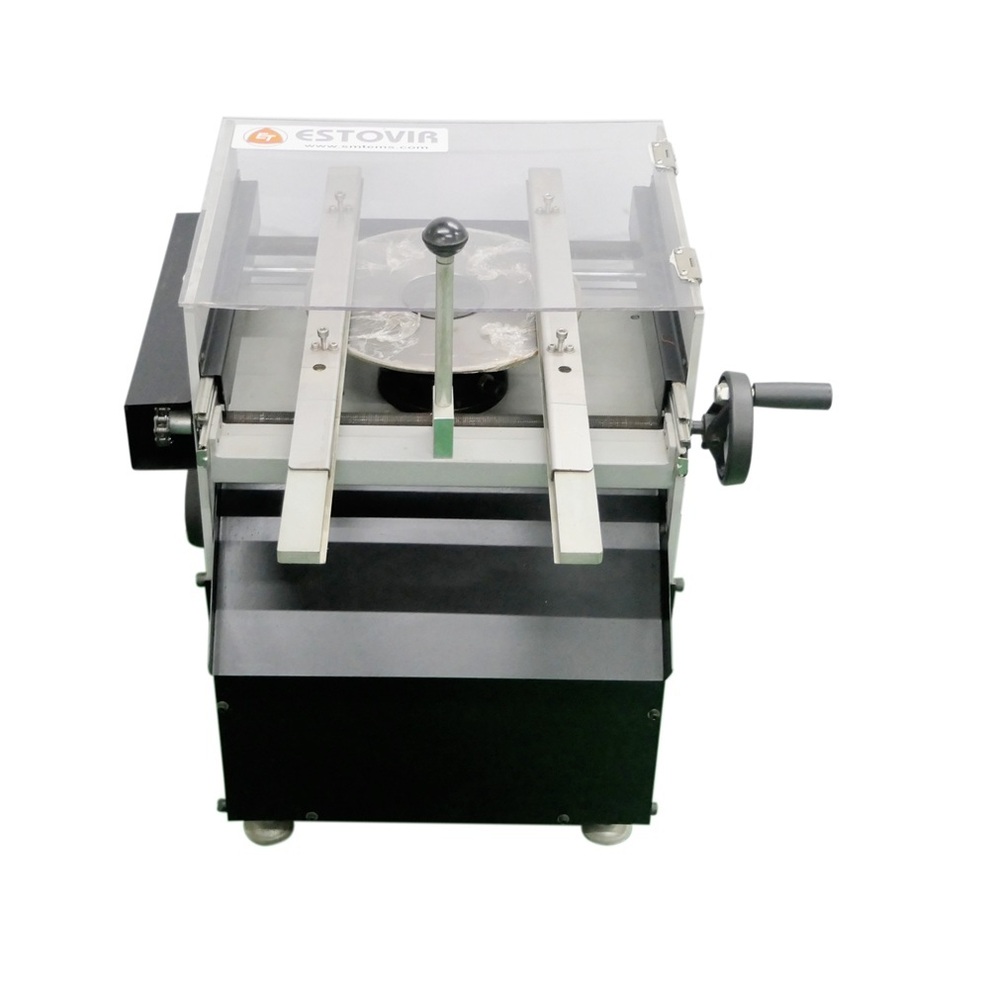

Manual Feed PCB Lead Cutting Machine - LC M66 by Estovir Technologies

Overview Manual Feed PCB Lead Cutting Machine - LC M66

The LC M66 Manual Feed PCB Lead Cutting Machine by Estovir Technologies is specially designed for trimming excess leads from printed circuit boards (PCBs) after the soldering process. Operated manually with a push handle, it ensures safe, accurate, and consistent cutting. Equipped with a high-speed tungsten carbide blade (LC TC 250), the LC M66 delivers smooth, damage-free cutting performance for PCB sizes up to 500 to  300 mm and thicknesses of 0.8 to 2.5 mm. Compact and efficient, this machine is ideal for small to medium-scale PCB assembly units.

Technical Specification

• Model: LC M66
• Operation Type: Manual Feed (push-handle)
• Cutting Blade: LC TC 250 Tungsten Carbide (250 mm OD, 70 mm ID, Thickness 3.5 mm)
• PCB Thickness: 0.8 to 2.5 mm
• Max PCB Size: 500 to  300 mm
• Cutting Height: 0.6 mm minimum
• Spindle Speed: 4500 RPM
• Main Motor Power:  HP
• Power Supply: 220V AC, 50 Hz
• Machine Weight: 95 Kg

Key Features of Manual Feed PCB Lead Cutting Machine - LC M66

• Manual Feed DesignOperators can easily guide PCBs using the push-handle, ensuring safe, consistent, and controlled cutting.
• Tungsten Carbide Blade (LC TC 250)Equipped with a high-performance carbide blade (250 mm) that delivers clean cuts and can be re-sharpened for longer service life.
• Accurate Post-Solder CuttingGuarantees uniform lead trimming without damaging solder joints or PCB surfaces, making it suitable for delicate boards.
• Durable Industrial BuildWith a strong 95 Kg frame, the LC M66 offers vibration-free operation and long-lasting reliability.
• Cost-Effective & Easy to OperateCompact, low-maintenance design with minimal power requirement ( HP motor) makes it ideal for small to medium-scale manufacturers.

Why Choose LC M66?

• Reliable cutting performance with manual control.
• Ensures clean, accurate trimming of soldered PCBs.
• Safe operation with push-handle feed design.
• Uses long-life, re-sharpenable LC TC 250 blades.

Applications of Manual Feed PCB Lead Cutting Machine - LC M66

• PCB assembly lines (small & mid-scale)
• Consumer electronics manufacturing
• LED and lighting PCB processing
• Automotive electronics assembly
